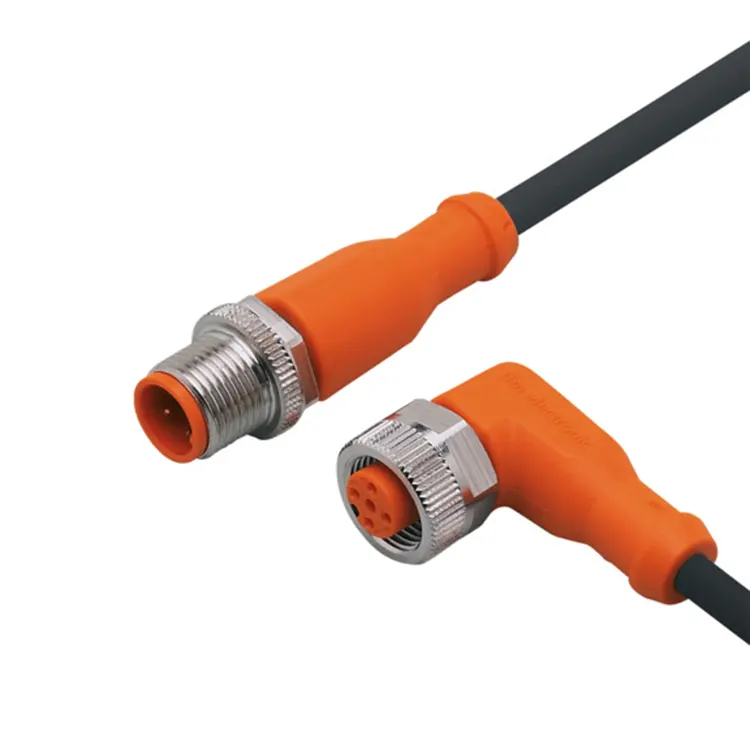

IFM EVC019

The IFM EVC019 is one of the products offered by Floating Light Automation in its capacity as an authorized distributor and supplier. This module provides reliable data transmission and signal acquisition capabilities for industrial automation systems and is widely used in applications such as conveyor line control, automated production workshops, intelligent logistics sorting, packaging equipment, and various other automation scenarios.

Core Specifications

· Protocol Support: Native AS-Interface V3.0 compliant, compatible with all standard AS-Interface master stations

· I/O Configuration: 4 digital inputs, 4 digital outputs (PNP type)

· Connection Mode: M12 integrated connector, fast wiring, stable connection

· Protection Level: IP67, suitable for harsh industrial environments with dust and water splash

· Operating Temperature Range: -25°C to +75°C, adapt to a variety of low-temperature and high-temperature working conditions

· Dimensions: 80mm × 40mm × 30mm, compact design saves cabinet and installation space

· Power Supply: AS-Interface bus powered, no external power supply required, reduces wiring engineering volume

Product Comparison

From the above comparison, we can see that the EVC019 has the largest I/O capacity among the compact AS-Interface modules of IFM, which can meet the access requirements of most on-site signal points and execution components at the same time, reducing the number of modules required for the system and lowering the overall cost of the project.

Compared with the PROFINET protocol AL1122, the EVC019 based on AS-Interface has simpler wiring, lower engineering cost, and is more suitable for distributed control scenarios that do not require extremely high-speed data transmission, which is exactly the common demand of most floating light automation systems.

How to Choose the Right Configuration?

1. Conveyor Sorting System

In automated logistics sorting lines, guide devices need to collect position signals from multiple photoelectric sensors and output control signals to steering gears and indicator lights.

It is recommended to match 1 IFM EVC019 module for every 8 working stations: 4 inputs are connected to the presence detection photoelectric sensors of the conveyor belt, and 4 outputs are connected to the indicator and the steering gear solenoid valve.

This collocation not only makes full use of the I/O capacity of the EVC019, but also avoids the problem of too many scattered modules caused by using small-capacity modules, which simplifies system maintenance.

2. Automatic Assembly Workshop Workstation

Each assembly workstation needs to collect trigger signals from start/stop buttons, safety door sensors, material detection sensors, and output control signals to fixture cylinders, status indicators, and conveyor belt transmission.

It is recommended to configure one EVC019 per workstation, and match the IFM AC1144 AS-Interface master module to connect to the PLC.

This collocation has been verified by a large number of actual projects, with stable communication, low failure rate, and easy later expansion: when you need to add working stations, you only need to connect new EVC019 modules to the bus in parallel, no additional complicated wiring is required.

3. Large-Scale Floating Light Warehouse System

For large intelligent storage systems with more than 50 working positions, it is recommended to use a combination of EVC019 and IFM EVC018: deploy EVC019 at main working positions that require both input and output signals, and deploy EVC018 at auxiliary detection points that only require 2 in 2 out.

This combination can save about 15% of the hardware cost on the premise of meeting the functional requirements, while maintaining the uniformity of the protocol and the convenience of maintenance.

Why Choose IFM EVC019?

Compared with other brands of similar modules, IFM EVC019 has three core advantages that are very suitable for automation systems

1. Anti-interference ability

In automation systems with multiple electrical devices working at the same time, the EVC019 adopts IFM's unique bus communication anti-interference design, which can maintain stable communication even in the environment of strong electromagnetic interference, avoiding false triggering of indicators caused by communication errors.

2. Long service life

The whole machine adopts industrial-grade components and potting packaging technology, which can resist vibration, dust, and moisture.

The average trouble-free working time exceeds 100,000 hours.

3. Easy debugging

Compatible with IFM's AS-Interface debugging tools, you can quickly check the communication status and I/O signal status through the software.

Order Information

Floating Light Automation supports small sample orders and bulk procurement, accept multiple payment methods including wire transfer, PayPal and credit card, and provide DHL, UPS and other international logistics services for North American customers.

The conventional delivery cycle is 3-7 working days, and expedited delivery service is available for urgent orders. If you need a quotation, product sample or technical specification document, please contact our customer service team online, we will reply you within 24 working hours.

Supply Capacity and Source Guarantee

1. Stable inventory

Floating Light Automation maintains 120+ pieces of finished inventory in our US West Coast warehouse and 200+ pieces in our China bonded warehouse, which can achieve 48-hour delivery for North American customers and can meet emergency orders of up to 500 pieces within 7 working days.

2. Authentic source guarantee

All EVC019 products are directly supplied by IFM's official regional warehouse, each product has a unique IFM serial number and quality certificate, supports official authenticity verification, 100% brand new original, no refurbished or second-hand products.

3. Bulk supply capacity

We can undertake annual bulk procurement contracts of more than 5000 pieces, with a monthly stable supply capacity of 800 pieces, and can arrange priority production and transportation for large orders to ensure that customers' project progress is not affected by product supply.

4. After-sales guarantee

All products enjoy the official IFM 12-month global warranty, we provide 24-hour online technical support and rapid replacement of defective products within the warranty period, to solve your worries after purchase.

FAQ

Q: Is the IFM EVC019 resistant to oil and coolant?

A: Yes, the EVC019 is resistant to oil and coolant. Featuring a PUR jacket and an FKM O-ring, it is suitable for long-term use in environments such as machine tools and hydraulic stations where exposure to oil and cutting fluid splashes occurs.

Q: Which sensors are compatible with the EVC019?

A: It is compatible with any sensor or actuator featuring an M12 A-coded 4-pin interface. This includes, but is not limited to, IFM photoelectric sensors (e.g., O6 series), IFM inductive proximity switches, IFM pressure and flow sensors, and M12 A-coded 4-pin sensors from other brands.

Q: Why does the connector remain loose or have a gap after tightening?

A: Check the condition of the O-ring. The EVC019 features a mechanical stop design to prevent the O-ring from being over-compressed during normal tightening.

If the O-ring is aged, deformed, or missing, the IP67 protection rating cannot be achieved even when tightened; in this case, the cable or the O-ring needs to be replaced.
