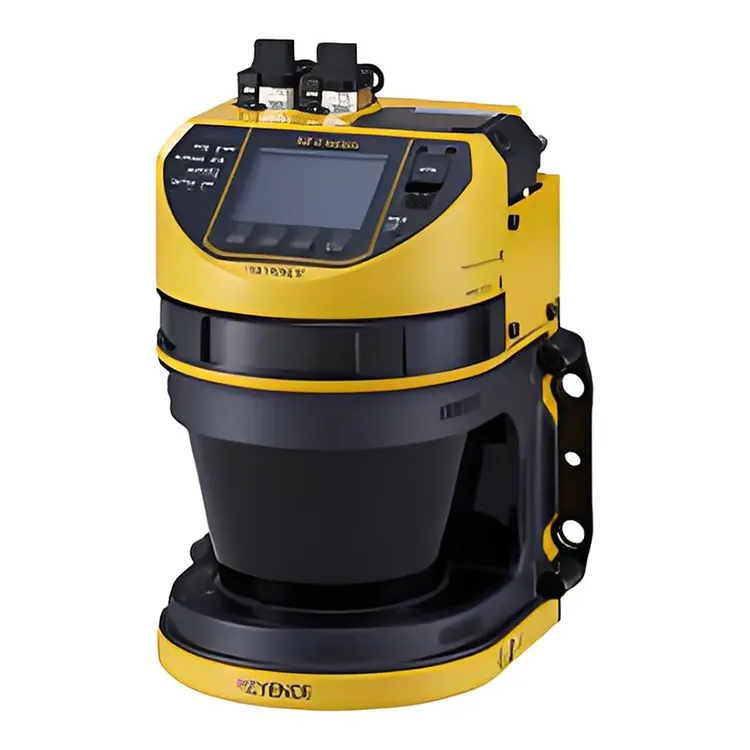

Keyence SZ-V32N

Floating Light Automation is a professional supplier of Keyence SZ-V32N, it is a multi-function safety laser scanner designed to meet the highest level of safety requirements in automated production lines, AGV/AMR mobile robots, automated warehousing and other scenarios.

It adopts Keyence's self-developed high-precision laser detection technology, which can achieve 270-degree wide-range area detection, and supports up to 32 programmable safety zones, which can flexibly adapt to complex working conditions and variable detection requirements.

Compared with traditional safety light curtains and pressure-sensitive safety mats, the SZ-V32N can detect irregular areas, and will not interfere with the normal passage of equipment and personnel, taking into account both safety and production efficiency.

Performance Parameters

Maximum protection distance of the safety zone reaches: 5m

maximum detection distance of the warning zone: 20m

Response time: 80ms, quickly trigger the safety stop of the equipment when a person or intruding object enters the dangerous area.

Standard: ISO 13849-1 Category 3 PL d safety standard, the most widely applicable safety level for most industrial applications, and can pass the compliance certification of the European Union, North America, and other regions smoothly.

Comparison of SZ-V Series Common Models

Keyence SZ-V series has a variety of different models to meet different application scenarios. The following is a detailed comparison of the SZ-V32N with other common models of the same series:

From the comparison, it can be seen that the SZ-V32N achieves a balance between performance, function and cost.

Compared with the entry-level SZ-V04 and mid-range SZ-V10, it has a longer protection distance and more programmable zones, which can adapt to more complex multi-working condition switching.

Compared with the top SZ-V32X, the price of SZ-V32N is about 15% lower, which can meet the needs of most conventional industrial applications, and is the most cost-effective high-performance model in the SZ-V series.

Compatible Module Matching Recommendations

The Keyence SZ-V32N can be matched with Keyence's original supporting modules to expand functions and adapt to more application scenarios.

We provide the following matching recommendations based on actual project application experience:

1. Basic Standalone Configuration

Recommendation matching: SZ-V32N main unit + SZ-VB03 connection cable + mounting bracket

This configuration is suitable for fixed hazard area protection scenarios such as automated punch press workstations, automated packaging lines, and fixed robotic arms.

It does not require additional expansion modules, can directly output safety signals to the equipment control system, and is low-cost and quick to install and debug.

2. Multi-Scanner Linked Configuration

Recommendation matching: 2-4 SZ-V32N main units + SZ-VU32 connection control unit + dedicated network cable

For large equipment or wide-area protection scenarios such as large automated gantry equipment, automated storage and retrieval systems, multiple SZ-V32N scanners can be linked through the SZ-VU32 control unit to achieve 360-degree no-deadzone full coverage detection.

The control unit can uniformly process the signals of multiple scanners, avoiding the problem of conflicting trigger logic caused by independent control, and improving the reliability of the entire safety system.

3. Mobile Robot Configuration

Recommendation matching: SZ-V32N main unit + SZ-VEM01 encoder module + vehicle power conversion module

When used for obstacle detection and safety protection of AGV/AMR mobile robots, the encoder module can realize the linkage between the scanner detection area and the vehicle speed.

When the AGV accelerates, the warning area and safety area will automatically expand, and when the AGV decelerates and turns, the area will automatically shrink, which can effectively avoid unnecessary false stops.

4. Harsh Environment Configuration

Recommendation matching: SZ-V32N main unit + SZ-VC01 protective cover + air purge interface

In industrial scenarios with a lot of dust, oil fume or water vapor, such as wood processing plants, food cooking lines, and forging workshops, the additional protective cover can prevent the surface of the scanner lens from being polluted.

The air purge interface can access clean compressed air to maintain the positive pressure inside the protective cover, further extending the service life of the equipment and reducing the frequency of routine maintenance.

Typical Application Scenarios

· Automated production line hazard area protection: It can be installed around the processing area of robotic arms, machine tools and other equipment to automatically trigger an emergency stop when personnel accidentally enter, which can avoid safety accidents without affecting the normal material input and output.

· AGV/AMR mobile robot safety protection: 270-degree wide detection can realize obstacle detection and personnel protection during the movement of the vehicle, ensuring the safe operation of the AGV in the dynamic environment of the factory.

· Automated three-dimensional warehouse access area protection: Detect the access channel of the storage shelf, stop the operation of the stacker when someone enters by mistake, and avoid personal injury and equipment damage.

· Automated dock and logistics sorting line: Protect the boundary of the dynamic operation area of the sorting equipment, balancing production efficiency and personal safety.

Why Choose Floating Light Automation?

As a professional industrial automation component supplier, Floating Light Automation has established a stable cooperative supply relationship with Keyence and its official authorized distribution channels.

At present, we maintain a long-term stock of more than 120 units of SZ-V32N in our warehouses located in Shanghai, Singapore and California, USA, which can achieve 48-hour delivery for conventional spot orders.

For bulk procurement requirements of more than 50 units, we can complete the transfer and delivery within 7 working days through the global supply network of Keyence.

All SZ-V32N products sold by us are original genuine products from Keyence's official production line, and each product comes with a unique serial number that can be verified on Keyence's official website.

We provide a 12-month full warranty service, and for non-human damage failures within the warranty period, we provide free replacement or repair services.

Up to now, we have supplied more than 3,000 sets of Keyence SZ series safety scanners to more than 40 countries around the world, with a customer satisfaction rate of over 98%, which fully proves the reliability of our product source and supply capacity.

After-sales Service Support

In addition to product supply, Floating Light Automation also provides professional technical support services. Our technical engineers have received official training from Keyence and can provide free pre-sales program design, on-site installation guidance and after-sales debugging support for global customers.

For bulk orders, we can also provide customized wiring and pre-commissioning services according to customer needs, reducing the on-site construction cycle for customers.

If you have any needs for quotation, ordering or technical consultation about Keyence SZ-V32N, please contact our customer service team through the contact information on this website, we will reply to you within 24 working hours.

FAQ

Q: What interfaces does the Keyence SZ-V32N have?

A: The SZ-V32N provides the following interfaces:

Ethernet interface: RJ45 connector for network communication and configuration

USB interface: For connecting to a PC and the SZ-V Configurator software

I/O interfaces: OSSD outputs (2 channels), AUX outputs (4 channels), and safety-related inputs

Power supply interface: 24V DC power input

Scanner head connection interface: For connecting up to 3 scanner heads

Q: What precautions should be taken during wiring?

A: Please note the following points during wiring:

1. Power polarity: Ensure the 24V DC power polarity is correct.

2. Grounding: The brown wire and the shielded wire must be grounded for proper startup.

3. PNP/NPN selection: The OSSD output type can be switched between PNP and NPN using the SZ-V Configurator.

4. Grounding issues with USB connection: When NPN output is selected and the SZ-V positive terminal is grounded, connecting to a PC (negative ground) via a USB cable may cause communication issues.

Q: How many scanner heads can be connected to the SZ-V32N?

A: Up to 3 scanner heads can be connected to achieve a wider area of coverage.
