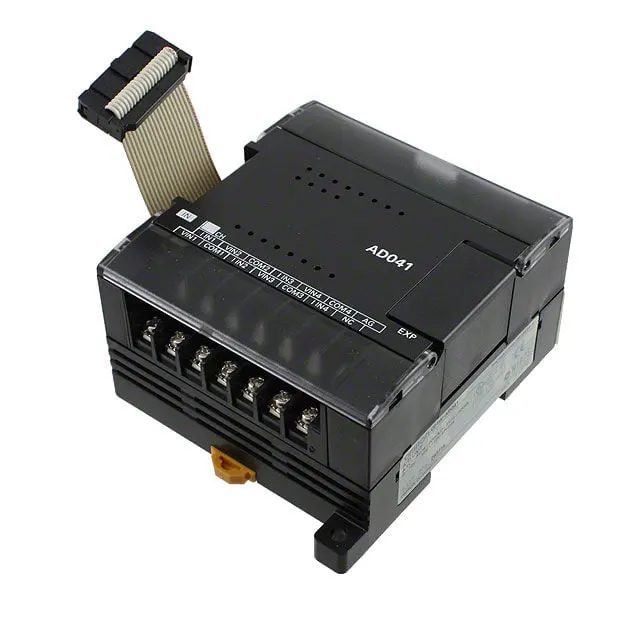

Omron CP1W-AD041

The Omron CP1W-AD041 is a 4-channel analog input expansion module exclusively matched with the CP1E series programmable logic controller. It can convert external 4-20mA current signals or 0-10V voltage analog signals into digital signals that can be recognized by the PLC, so that the control system can collect and process continuous changing physical parameters.

Each channel supports independent signal range setting, which can flexibly adapt to different types of sensors and on-site working conditions. Omron's original manufacturing technology guarantees the stability of the module in long-term continuous operation, and the compact size will not take up extra installation space in the electrical cabinet.

Core Technical Specifications

· Number of input channels: 4 isolated analog input channels

· Supported signal types: 0-10V DC voltage, 4-20mA DC current

· Resolution: 1/4000 (full scale)

· Conversion speed: 150μs per channel

· Accuracy: ±0.3% full scale (25°C ambient temperature)

· Power supply: Powered by the host CP1E PLC, no external power supply required

· Installation method: Compatible with Omron DIN rail mounting, can be directly installed on the CP1E expansion bus

· Operating environment temperature: 0°C to 55°C, storage temperature: -20°C to 75°C

· Humidity: 5% to 95% RH (no condensation)

Comparison of Similar Omron Analog Input Modules

Omron provides different specifications of analog expansion modules for CP series PLCs. For the convenience of customers to choose the right product, we have sorted out the core parameters of several common models for comparison as follows:

From the comparison results, it can be seen that CP1W-AD041 has more obvious cost advantages when you need to collect 3-4 analog signals on the CP1E platform.

Compared with the 2-channel CP1W-AD021, the unit channel cost of CP1W-AD041 is reduced by about 15%, which is more suitable for the application of medium-sized control systems.

Unlike the high-precision modules of the CJ series, the CP1W-AD041 is positioned for general industrial control, and its accuracy can fully meet most of the detection requirements of light industry, packaging, water treatment and other industries, and the price is only 1/3 of that of high-end modules.

Recommended Matching Solutions

1. Matching with PLC Host

CP1W-AD041 is specially developed for the Omron CP1E series PLC, which can be directly expanded on the CP1E N series, E series and S series hosts.

One CP1E host can connect up to 3 CP1W expansion modules including CP1W-AD041, that is, up to 12 analog input channels can be expanded, which can meet the signal acquisition requirements of most small and medium-sized automation equipment.

If you use the CP1H or CP1L series older hosts, this model is also compatible, but you need to confirm the firmware version of the host before purchasing.

If you need to expand more than 12 channels, we recommend that you match the CP1E-N60 host with higher capacity, which can support more expansion modules to meet the demand.

2. Matching with Other Expansion Modules

According to different application scenarios, we provide the following common matching combinations:

· Small temperature and pressure detection system: CP1E-N20 + 1 x CP1W-AD041 + 1 x temperature sensor + 1 x pressure sensor, this combination can collect 2 temperature signals and 2 pressure signals at the same time, the cost is controlled within $300, which is very suitable for small industrial testing equipment.

· Multi-channel liquid level control system: CP1E-N40 + 2 x CP1W-AD041 + 1 x CP1W-DA021, 8 liquid level input signals, 2 analog output adjustment signals, can realize automatic liquid level adjustment of 4 storage tanks, which is widely used in small water treatment and food processing equipment.

· Multi-axis inverter speed acquisition: CP1E-N30 + 1 x CP1W-AD041 + 4 x frequency converters with analog output, collect the output frequency and current signals of 4 inverters in real time, realize the centralized monitoring of the conveying system, which can effectively improve the operation stability of the equipment.

3. Adaptation of Sensors

CP1W-AD041 supports 0-10V voltage output and 4-20mA current output sensors at the same time, most common industrial sensors on the market can be directly connected without additional conversion modules, including pressure transmitters, temperature transmitters, ultrasonic level sensors, flow sensors, displacement sensors, etc.

If your sensor outputs a different signal range, you can also adjust the range through the PLC program to adapt, which has high flexibility.

Typical Application Scenarios

· Light industrial packaging equipment: collect the pressure of the packaging film and the temperature of the sealing part, adjust the parameters in real time to ensure the packaging quality

· Water treatment system: collect the liquid level of the water tank, the flow of the pipeline and the PH value, and realize the automatic start and stop of the water pump

· Constant temperature control system: collect the temperature signal output by the transmitter, and output the control signal through the matching analog output module to adjust the heating power

· Textile machinery: collect the tension signal of the yarn, adjust the speed of the feeding roller to maintain the stability of the tension

· Automated testing equipment: collect multiple analog signals from the test bench for data recording and judgment, instead of manual testing to improve efficiency

After-sales Service Support

All Omron CP1W-AD041 modules sold by Floating Light Automation provide 12 months of after-sales warranty service. During the warranty period, if there is any non-human damage quality problem, we will provide free replacement or full refund.

We have professional technical engineers who can provide you with free technical consultation, including wiring guidance, program setting and other related questions.

For bulk orders, we can provide additional bulk discounts, and specific preferential policies can be contacted by our sales staff for negotiation.

Supply Capacity and Source Guarantee

Floating Light Automation has established a long-term stable cooperative supply relationship with Omron's official authorized distributors and large-scale channel suppliers.

At present, the spot inventory of CP1W-AD041 in our warehouses in China and the United States has reached 120+ units, which can meet the demand of small-batch prototype trial production and large-batch procurement of complete sets of equipment.

All products sold by us are 100% original new products, which can provide Omron original factory quality inspection certificates and batch qualification certificates.

We support third-party factory inspection, any product quality problems that do not meet the original factory standards can be returned or replaced unconditionally within 12 months.

In terms of logistics, we support DHL, FedEx, UPS and other global express channels, and the order can be shipped within 24 hours after payment, and the general European and North American regions can be delivered within 3-7 working days.

For long-term cooperative engineering customers, we can provide a rolling inventory reserve service to ensure that your project will not affect the construction progress due to shortage of accessories.

FAQ

Q: How do I install the Omron CP1W-AD041?

A: The CP1W-AD041 connects directly to the right side of the CPU Unit or the preceding expansion unit via an expansion connector. To install:

1. Plug the module's expansion I/O connecting cable into the expansion connector of the CPU Unit or the preceding expansion unit.

2. Secure the module onto the DIN rail.

3. If additional expansion units are required, further expansion is possible via the expansion connector on the right side of the module.

Note: The expansion I/O connecting cable is permanently attached to the module and cannot be removed. Do not touch the cable during operation to prevent malfunctions caused by static electricity.

Q: Does the CP1W-AD041 support averaging?

A: Yes, it does. Averaging can be enabled or disabled individually for each channel within the input range settings.

When averaging is enabled, the module outputs the average value of multiple samples, which helps suppress signal noise.

Q: Does the CP1W-AD041 support wire-break detection?

A: Yes, it does. The CP1W-AD041 features wire-break detection for the 1–5 V and 4–20 mA input ranges. The module can detect an abnormal state if a sensor signal wire breaks.
