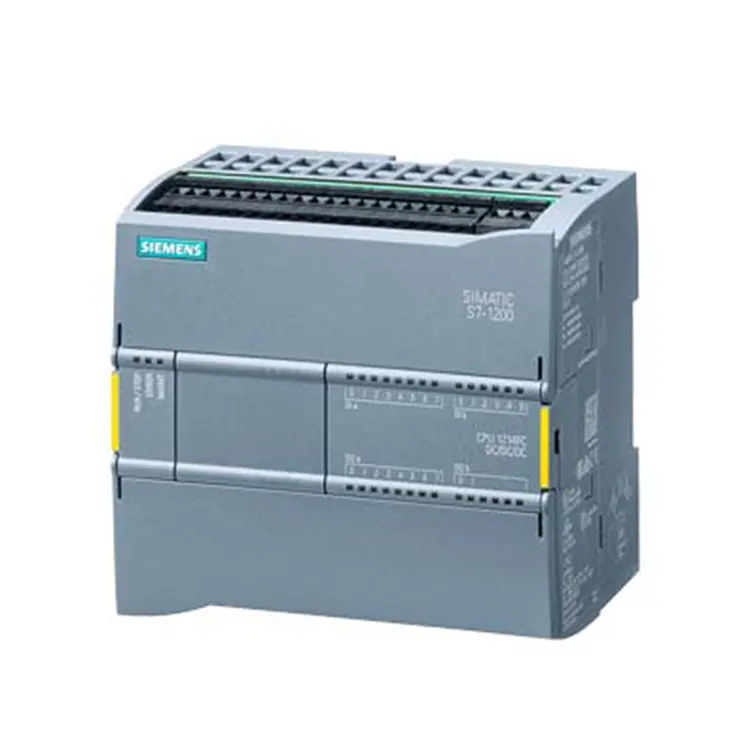

Siemens 6ES7214-1AF40-0XB0

As one of the core processing units of Siemens SIMATIC S7-1200 series, the Siemens 6ES7214-1AF40-0XB0 is a compact CPU designed for small to medium-sized industrial automation control scenarios. It can meet the control requirements of various automatic production lines, industrial equipment and intelligent manufacturing systems.

Floating Light Automation has long maintained stable stock of this product, choose us as your supplier and get a discount today!

Product Specifications and Performances

Basic Product Parameters

Core Performance Advantages

Siemens 6ES7214-1AF40-0XB0 has a 32-bit microprocessor core that can quickly process logic instructions, with an instruction processing speed of up to 0.1 µs per basic instruction, which can quickly respond to on-site input signal changes and output accurate control commands.

The built-in PROFINET interface simplifies system networking, which can directly connect to HMI touch screens, upper computers and other automation devices, and supports Profinet IO communication to realize distributed control expansion.

This model is very friendly to engineering developers, and supports full programming in Siemens TIA Portal, which provides convenient functions such as drag-and-drop programming, online simulation and one-click download, greatly shortening the project development cycle.

At the same time, it supports rich instruction libraries, including PID control, motion control and communication instructions, which can meet the control requirements of most conventional industrial scenarios.

Comparison with Similar Models of SIMATIC S7-1200 Series

In order to help customers choose the most suitable CPU module, we compare the 6ES7214-1AF40-0XB0 with two other common models of the same series, as shown in the following table:

From the comparison results, we can see that the 6ES7214-1AF40-0XB0 has a very high cost performance between the entry-level 6ES7212 and the high-end 6ES7215.

Compared with the entry 6ES7212, it has more I/O points and larger memory, which can support more complex logic functions; compared with the high-end 6ES7215, its price is more advantageous, which can meet the control requirements of most conventional projects without causing unnecessary cost waste.

Collocation Recommendation and Expansion Plan

1. Signal Module Expansion Collocation

The 6ES7214-1AF40-0XB0 supports the expansion of up to 8 signal modules (SM) to meet the demand of more I/O points and special signal types.

We provide the following collocation recommendations according to different application scenarios:

· Conventional digital control scenario

It is recommended to match 6ES7221-1BH32-0XB0 (16-point digital input module) and 6ES7222-1BH32-0XB0 (16-point digital output module).

This collocation can increase the I/O capacity to meet the control requirements of 10+ actuators and 20+ sensors, and is suitable for assembly line transmission control, packaging machinery and other scenarios.

· Analog signal acquisition scenario

If you need to collect temperature, pressure, flow and other analog signals, it is recommended to add 6ES7231-4HF32-0XB0 (8-channel analog input module), which supports 4-20mA and 0-10V signal input, can meet the multi-point detection demand of conventional process control.

If you need analog output to control the actuator, you can match 6ES7232-4HB32-0XB0 (4-channel analog output module).

· Temperature measurement scenario

For the scenario that requires direct access to PT100 thermocouples, it is recommended to match 6ES7231-5PD32-0XB0 (4-channel RTD temperature measurement module), which can directly output temperature values without additional signal conversion, simplifying system wiring.

2. Communication and Other Expansion Collocation

If you need to increase the communication interface to connect to other field devices, you can expand the 6ES7241-1CH30-1XB0 CM 1241 RS485 communication module, which supports Modbus RTU communication protocol, can connect to frequency converters, sensors and other devices with serial communication interface.

If you need to connect to industrial Ethernet equipment of other protocols, you can choose the CM 1242-5 communication module to realize Profibus DP connection.

For applications that require data storage, the 6ES7954-8LC03-0AA0 4GB memory card can be added to store process data, program backups and logging files, which is convenient for subsequent data traceability and program maintenance.

Common Applicable Scenarios

The Siemens 6ES7214-1AF40-0XB0 is widely used in various industrial automation fields because of its moderate performance and price.

Common applicable scenarios include:

· Small and medium-sized automatic assembly and processing production lines

· Packaging machinery, labeling machinery and other food and pharmaceutical processing equipment

· Intelligent logistics sorting conveyor system

· Textile machinery, printing machinery and other traditional industrial equipment automation transformation

· Water treatment, environmental monitoring and other small distributed control systems

· Building automatic control system, such as parking lot management, ventilation control

Ordering Instructions

If you need to purchase Siemens 6ES7214-1AF40-0XB0, you can contact our sales team through the contact information on this website to get the latest quotation and delivery time.

We support a variety of payment methods, and provide complete customs declaration and transportation documents for cross-border orders to ensure smooth customs clearance.

For customers who need bulk procurement for a long time, we can provide customized price plans and agreed stock guarantee services to ensure the continuous supply of your project materials.

Our Supply Capacity and Source Guarantee

1. Our Guarantee

As a professional industrial automation component supplier, Floating Light Automation has established a long-term stable cooperative relationship with large-scale authorized distributors and channel providers of Siemens.

The 6ES7214-1AF40-0XB0 product we provide is 100% original genuine from Siemens, and each product comes with a complete factory serial number and quality certification, which can be queried and verified through the official Siemens channel.

Unlike the second-hand refurbished products and counterfeit products that are common in the market, all our products are directly transferred from the regular supply chain, without any refurbished, refurbished or expired inventory, which fundamentally guarantees the service life and operation stability of the product.

2. Supplying and After-Sale Services

We maintain a conventional stock of more than 120 units of this model in our overseas warehouses in Europe and North America, and can achieve 24-hour shipment for conventional orders.

For bulk procurement demand of more than 50 units, we can complete the delivery arrangement within 7 working days through our regular replenishment channels.

In addition, we also provide flexible shipping options including DHL, FedEx and sea freight, which can deliver the products to your designated address in the fastest 3 working days.

For after-sales, we provide 12 months of original quality warranty, and provide free technical support for product installation, debugging and programming consultation throughout the life cycle.
