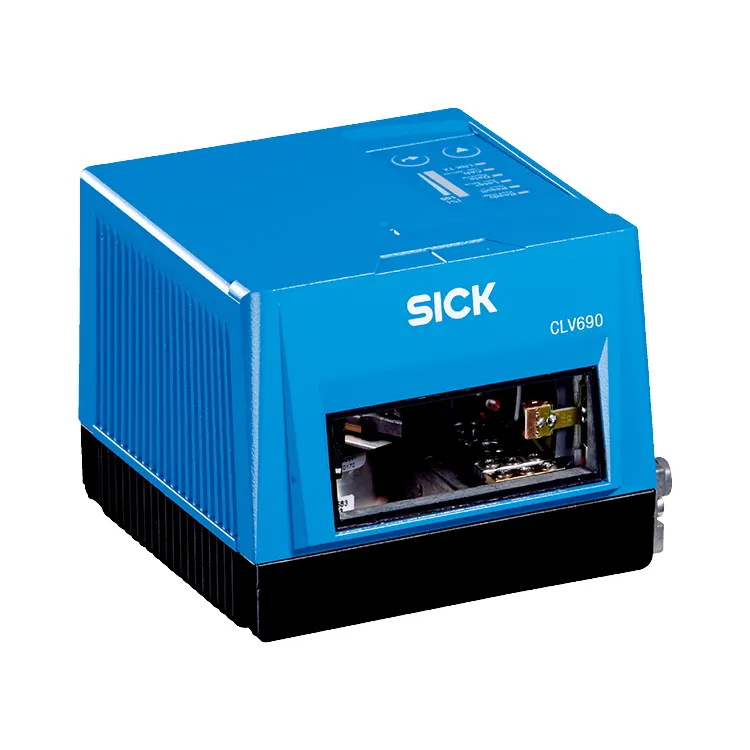

SICK CLV690-0000

Floating Light Automation is an authorized distributor of the SICK CLV690-0000 and a reliable, long-term supply partner. With a monthly supply capacity of up to 120 units and over 35 units consistently in stock at our North American warehouse, we ensure rapid shipment, typically within three business days, for the vast majority of global orders.

Core Product Specifications

The CLV690-0000 is positioned as a long-distance, high-speed fixed barcode scanning device, which can meet the identification needs of 1D barcodes in various complex industrial environments.

The core parameters are as follows:

· Scanning distance: 100 mm to 1900 mm, supports long-distance identification of large-size packaging labels

· Scan rate: Up to 1200 scans per second, adapting to high-speed conveyor belt sorting lines

· Supported codes: All common 1D barcodes including Code 39, Code 128, EAN, UPC, Interleaved 2 of 5, etc.

· Resolution: Supports minimum barcode module width of 0.25 mm

· Interface type: Built-in RS-232, Ethernet TCP/IP, PROFINET, supports multiple industrial communication protocols

· Protection grade: IP65, resistant to dust, water vapor and mechanical shock, suitable for harsh workshop environment

· Operating temperature: -30°C to +55°C, adapt to cold storage, outdoor logistics and other extreme temperature scenarios

CLV690 Series Model Comparison

The CLV690 series has multiple derivative models to meet different application scenarios.

The following is a comparison of the core parameters of common models including CLV690-0000:

From the comparison, we can see that the CLV690-0000 is the most versatile basic model in the CLV690 series, balancing scanning distance, interface compatibility and cost effectiveness, and is the preferred model for most conventional industrial identification scenarios.

Recommended Matching and Application Combinations

1. Matching with SICK Sensors for Complete Solution

According to different application scenarios, we recommend matching SICK's other standard sensors to form a complete automatic identification solution:

· Logistics sorting line scenario: CLV690-0000 + SICK DT35 distance sensor. The distance sensor triggers scanning when the cargo reaches the specified position, which improves the scanning success rate of oversized and irregular cargo, and reduces the missed scanning rate by more than 90% compared with independent use.

· Automatic warehouse entry and exit scenario: CLV690-0000 + SICK WL12 photoelectric switch. The photoelectric switch accurately identifies the position of the pallet, triggers scanning at the right time, and adapts to the high-frequency access of different specifications of goods.

· Production line product tracking scenario: CLV690-0000 × 2 (two-sided scanning) + SICK FX0-GIO safety relay. Two scanners complete barcode identification on the front and back of the product at the same time, and the safety relay provides abnormal stop protection, which is suitable for mass production of assembly lines.

2. Module Expansion Matching

When customers need to access multiple scanners or expand IO interfaces, we recommend matching the SICK CDF600-0100 communication module.

This module can connect up to 4 CLV690 series scanners to the PROFINET bus at the same time, simplifying the wiring of the control system, which is especially suitable for multi-station scanning applications in logistics distribution centers.

Typical Application Scenarios

The SICK CLV690-0000 has been widely used in the following industries due to its stable performance and long scanning distance:

· Logistics distribution center: high-speed sorting of packages, automatic scanning of pallet labels, the scanning success rate exceeds 99.9% for packages moving at 3m/s

· Automobile manufacturing: parts incoming inspection, whole vehicle production process tracking, can adapt to the workshop environment with more oil fume and dust

· Warehouse automation: automatic storage and retrieval of pallet goods, out-of-warehouse verification, can complete identification at a long distance of 1.5 meters without adjusting the installation position for different heights of pallets

· Cold chain logistics: adapted to the low temperature environment of cold storage, it can still work stably at -25°C without condensation affecting the scanning effect

Supply Capacity

As a SICK authorized distributor in North America, Floating Light Automation has established a long-term stable cooperative relationship with SICK's official regional warehouse.

At present, the source of CLV690-0000 is 100% original new products directly supplied by SICK's German factory, without any refurbished or secondary repackaged products.

Our current supply capacity is as follows:

· Standing inventory: 38 units of CLV690-0000 in our Los Angeles warehouse, can be shipped on the same day for orders placed before 3PM local time

· Monthly supply capacity: 120 units, which can meet the bulk procurement needs of large system integration projects and equipment manufacturing factories

· Replenishment cycle: For out-of-stock models, the fastest replenishment can be completed within 7 working days through SICK's regional transit warehouse

· Warranty service: All products provide 12 months of official global warranty, and we provide 7*24 hours of technical support and after-sales response

We can provide customers with original factory qualification certificates, batch inspection reports and other supporting documents to ensure the legitimacy and reliability of the product source, which is widely recognized by system integrators and end users in North America.

Why Purchase CLV690-0000 From Floating Light Automation?

· 100% original genuine guarantee: official authorized distribution, complete qualification, can provide factory traceability

· Stable inventory guarantee: long-term standing inventory, avoid the long delivery cycle caused by global supply chain fluctuations

· Competitive price: bulk purchase discount for orders over 10 units, support project price quotation

· Professional technical support: our engineering team has more than 8 years of experience in SICK product application, can provide free installation guidance and program debugging suggestions

FAQ

Q: What are common errors during the installation of the SICK CLV690-0000?

A: Common installation issues include:

1. Misalignment with the barcode: The scanner's optical path is not directly aligned with the barcode, causing glare or read failures.

2. Incorrect trigger signal settings: The trigger source is selected incorrectly, or the timing for starting/stopping the read cycle is wrong.

3. Encoder signal issues: Incorrect positioning or configuration of the incremental encoder.

4. Insufficient power capacity: Inadequate supply voltage or cable gauge that is too thin.

5. Incorrect focal length setting: Failure to verify the focal length setting using the background display.

Q: How can I quickly determine if the installation is correct?

A: You can use a two-step verification method:

Static test: Use the "Percentage Evaluation" function; place the barcode stationary at the reading position and check if it reads successfully.

Dynamic test: Move the barcode along the conveyor belt to verify the stability of dynamic reading.

If it reads statically but not dynamically, the issue usually lies with the trigger signal or encoder settings.

Q: How do I choose between scanning frequencies of 400 Hz and 1200 Hz?

A: Higher scanning frequencies allow for faster reading speeds but impose stricter requirements on barcode quality:

400 Hz: Suitable for low-speed conveyors and scenarios with average barcode quality.

1200 Hz: Suitable for high-speed conveyors and scenarios with high barcode quality.

It is recommended to start commissioning with a middle-range value and adjust based on the actual read success rate.
