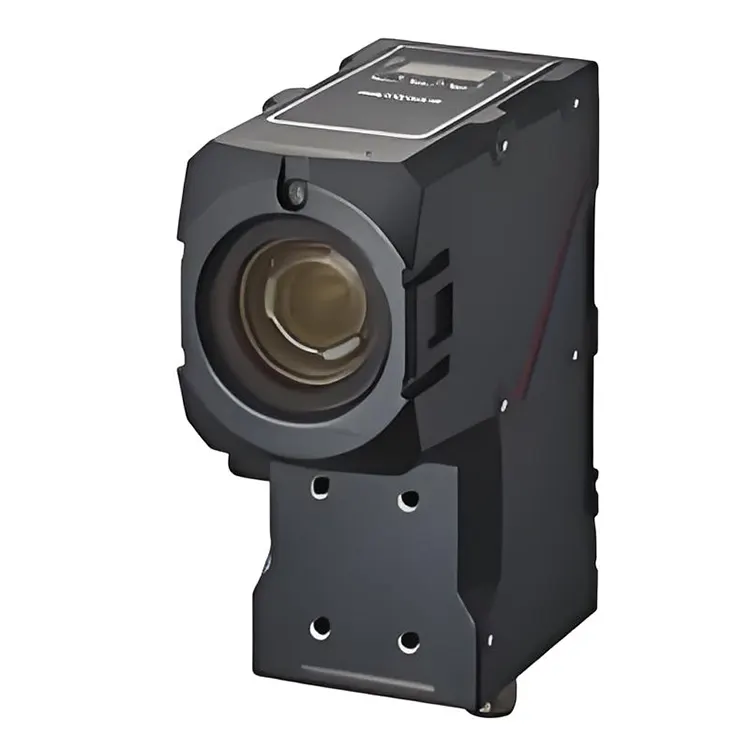

As a trusted global distributor of automation products, Floating Light Automation maintains a steady stock of the Keyence VS-L500MX, with a monthly supply capacity of up to 120 unitsm, enabling us to meet needs ranging from small-batch prototype testing to large-scale production line replenishment.
All products are sourced directly from authorized Keyence channels and come with complete manufacturer certification and traceable serial numbers, guaranteeing 100% genuine quality.
|
Specification Item |
Parameter Details |
|
Light Source Type |
Coaxial floating LED light |
|
Emitting Color |
Monochromatic red (625nm) |
|
Overall Size |
50mm × 50mm × 28.6mm |
|
Effective Illumination Area |
48mm × 48mm |
|
Input Voltage |
DC 12V ± 5% |
|
Maximum Power Consumption |
6.5W |
|
Working Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Connection Method |
Special 2-core power connector, compatible with Keyence CA series controllers |
The VS-L500MX adopts Keyence's exclusive micro-optical diffusion coating technology, which achieves uniform surface illumination with a brightness consistency of more than 92%, effectively avoiding local overexposure or underexposure caused by uneven light sources.
Even when matched with 12-megapixel high-resolution industrial cameras, it can output clear edge contour images, which is especially suitable for microscopic defect detection of small precision parts.
Unlike traditional fixed coaxial light sources, the Keyence VS-L500MX adopts a spring floating structural design, which can automatically adjust the distance between the light source surface and the measured object according to the shape of the workpiece, effectively reducing specular reflection.
This design also eliminates the need for manual repeated adjustment of the light source position after equipment replacement.
The product uses high-power industrial-grade LED chips with a designed service life of more than 50,000 hours.
Even under continuous 24-hour high-load working conditions, it can maintain stable brightness output for a long time, with a brightness attenuation of less than 5% within 3 years of use.
In order to help users quickly select the appropriate light source product for different inspection scenarios, we sort out the core differences between VS-L500MX and other common models of Keyence VS series as follows:
|
Model |
Light Source Type |
Effective Size |
Core Applicable Scenarios |
Price Difference vs VS-L500MX |
|
VS-L500MX |
Floating coaxial light |
48×48mm |
High-gloss surface defect detection, chip pin positioning, small part outline inspection |
Benchmark |
|
VS-L500F |
Fixed coaxial flat light |
48×48mm |
Low-gloss surface normal inspection, non-metallic material scanning |
Approximately 15% lower |
|
VS-L300MX |
Floating coaxial light |
28×28mm |
Micro-miniature parts inspection, small size vision module integration |
Approximately 25% lower |
|
VS-B500MX |
Floating backlight |
48×48mm |
Contour dimension measurement, through hole detection, appearance size sorting |
Approximately 10% higher |
|
VS-L500WX |
Floating coaxial white light |
48×48mm |
Color difference identification, appearance color sorting, multi-feature comprehensive inspection |
Approximately 20% higher |
From the comparison, it can be seen that VS-L500MX is a medium-sized, balanced performance product in the Keyence floating coaxial light product line, which covers most of the conventional precision inspection requirements, and has a higher cost performance than the large-size and color light models, while having a wider applicable range than the small-size fixed-structure models.
According to the actual application experience of thousands of production lines, we provide the following matching recommendations for Keyence VS-L500MX, which can be selected according to your inspection needs:
· Recommended matching: VS-L500MX + Keyence CV-X350F controller + CA-HX200C 20-megapixel camera
· Advantages: The uniform illumination of VS-L500MX can clearly present tiny scratches, sticky materials and pin deformation defects on the chip surface, and the floating structure avoids reflection interference of the metal lead frame, which can achieve 100% full inspection of 0.5μm level defects.
· Recommended matching: 2 sets of VS-L500MX side-mounted + Keyence XG-X2000 controller + CA-LH16 lens
· Advantages: The adjustable distance floating design adapts to the radian of the curved glass cover, the coaxial light can amplify the contrast of tiny scratches on the high-gloss glass surface, and the dual light source layout eliminates the detection blind area at the edge of the cover plate.
· Recommended matching: VS-L500MX + Keyence CA-DC21E power controller + CA-200M black and white camera
· Advantages: The stable brightness output meets the high-speed beat requirements of the automatic assembly line, the uniform light can clearly present the gap and position deviation of the connector pins, and the high compatibility with Keyence's own controller reduces the system integration debugging time by more than 30%.
· Recommended matching: Multiple VS-L500MX + expansion mounting bracket + unified CA-DC40E power distribution
· Advantages: Modular layout can cover large workpieces of different sizes, the consistency of each light source parameter ensures the unification of inspection standards, and the unified power supply control facilitates system management.
Floating Light Automation has maintained long-term close cooperation with Keyence authorized distributors.
At present, the VS-L500MX in our warehouse has 68 units of spot stock, which can be shipped on the same day for orders within 10 units, and the order can be delivered within 3 working days for 10~50 units.
For large-scale procurement of more than 50 units, we can complete the source allocation and delivery within 7 working days through the regular replenishment channel of the original factory.
All VS-L500MX products sold by our platform provide complete qualification certification: including original factory packing list, product serial number verification certificate, and 12-month original factory quality assurance service.
During the warranty period, if there is a non-human damage performance failure, we support free replacement or full refund.
We also provide 7×24 hours of technical consulting services, supporting engineers to provide you with free system matching and debugging suggestions according to your actual inspection scenarios.
If you need to get the latest price, sample testing policy or other supporting product information, you can contact our customer service team through the website, we will reply to you within 24 working hours.
A: Yes. The VS-L500MX supports PoE (IEEE 802.3at, Power Class 4).
When using PoE, both power supply and data transmission can be handled via a single Ethernet cable. It can also be powered by a 24V DC power supply.
A: The exposure time can be set within the range of 0.033 ms to 1000 ms, making it suitable for various scenarios ranging from high-speed moving objects to static, high-precision inspections.
A: There could be several reasons; here are some countermeasures and suggestions:
● Inappropriate exposure time: Adjust the exposure time (0.033–1000 ms).
● Improper gain setting: Adjust the Gain parameter.
● Insufficient or excessive lighting: Check the lighting configuration; the VS-L500MX supports dedicated lighting connections.
● Fine HDR not enabled: Enable the Fine HDR function for scenes with high contrast between light and dark areas.
● Improper gamma correction: Adjust the Gamma parameter.
