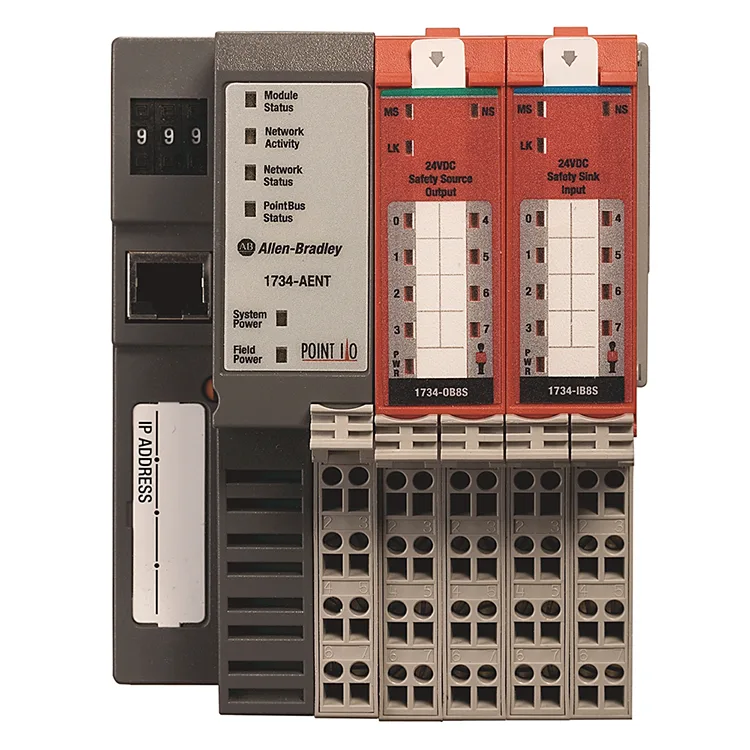

Allen-Bradley 1734-AENT

Floating Light Automation is a supplier that can offer genuine original Allen-Bradley 1734-AENT adapters, with complete stock and fast global delivery. All products come with official quality assurance to help your automation project get online quickly.

This adapter is a high-performance EtherNet/IP network adapter designed for the POINT I/O distributed I/O system, developed by Rockwell Automation.

Key Specifications

Core Features

1. Flexible Distributed I/O Architecture

The Allen-Bradley 1734-AENT supports up to 63 POINT I/O modules of different types, including digital input, digital output, analog input/output, temperature measurement, and specialty modules.

This modular design allows users to freely combine I/O modules according to actual application requirements.

Distributed installation can significantly reduce field wiring costs, especially suitable for applications where I/O points are scattered across the production site.

2. High Reliability Industrial Network Communication

Equipped with two 10/100 Mbps auto-negotiation Ethernet ports, the 1734-AENT supports Device Level Ring (DLR) network topology, which can achieve network redundancy.

When a single network cable or device fails, the system can automatically switch the communication path within 300ms to ensure continuous operation of the production line, effectively improving the overall reliability of the control system.

It also supports CIP Sync protocol, which can achieve precise time synchronization for motion control and other applications requiring high time accuracy.

3. Compact Design Saves Control Cabinet Space

Adopting the POINT I/O ultra-thin modular design, the width of the 1734-AENT adapter is only 67 mm, which can greatly save the limited installation space in the control cabinet.

DIN rail mounting is supported, which is convenient for quick installation and on-site debugging. The modular replacement design also reduces the time required for maintenance and replacement.

4. Comprehensive Diagnostic and Status Indication

The adapter is equipped with clear LED status indicators, which can display the power status, network connection status, adapter operation status and fault information at a glance, helping on-site maintenance personnel quickly locate and solve problems.

It also supports network-based remote diagnosis, which is convenient for engineers to remotely view equipment status and carry out troubleshooting.

Application Scenarios

· Automated production line distributed I/O control

· Material handling and conveyor system

· Packaging and labeling equipment

· Industrial robot peripheral signal acquisition and control

· Water treatment and environmental monitoring system

· Intelligent manufacturing and industrial Internet of Things (IIoT) edge I/O access

· Machine retrofitting and automation upgrading projects

Ordering and Support Information

All Allen-Bradley 1734-AENT products provided by Floating Light Automation are original genuine products, all coming from official authorized channels. We provide the following support services:

· Complete stable stock, support same-day shipping for in-stock items

· Provide global door-to-door logistics services, support multiple freight methods

· 12-month product quality warranty, technical support provided throughout the product life cycle

· Can provide matching POINT I/O module selection and system configuration consultation

If you have any questions about product specifications, price, inventory and delivery, please contact our customer service team through the contact information on this website. We will reply to you within 24 working hours.

FAQ

Q: Does the Allen-Bradley 1734-AENT support DLR?

A: It does not support it natively. The 1734-AENT has only one Ethernet port, so it cannot form a DLR ring topology. If the network architecture requires DLR redundancy, the 1734-AENTR (dual-port adapter) should be selected.

Q: Does the 1734-AENT support Direct Connection and Rack Optimization?

A: Yes, the 1734-AENT supports both communication modes: Direct Connection and Rack Optimization.

Q: What should I do if the module status indicator is flashing red?

A: A flashing red light indicates a recoverable fault. Common causes include:

1. Configuration mismatch (e.g., Series or Revision settings do not match the I/O tree)

2. Electronic Keying mismatch

3. I/O module configuration error

Troubleshooting steps: Check if the module properties in Studio 5000 match the actual hardware; if necessary, try setting Electronic Keying to "Disable Keying."
